TOP FEATURES
- Certified OSB
- Impact rated polyethylene foam
- Class A fire rated PVC Vinyl
- 2 inch thick foam
- 18 oz vinyl covering
- Meets ASTM2440 Standards
- LEED certification
- Contains at least 60% recycled pre-consumer raw material
Use Types
Gym Wall Pads, Basketball Court Walls, School Wall Pads, Wrestling Rooms, Martial Arts, Combat Training, Safe Rooms, Door Pad, Window Pad
Safety Wall Pad 1×7 Ft x 2 Inch WB LipTB ASTM – Class A PVC vinyl 18 oz
Impact wall pads are a safety indoor stationary Safety Wall Pad 1×7 Ft x 2 Inch WB LipTB ASTM, intended for direct wall connection.
Safety Wall Pad 1×7 Ft x 2 Inch WB LipTB ASTM is an indoor stationary wall padded panel, intended for direct wall connection. The panel is a wood backed pad with a 2 inch Impact rated polyethylene foam bonded together using a two-part adhesion process. The panel is then covered front and sides with a Class A PVC vinyl, then firmly stapled onto the wooden backing of the panel.
Components
1. Backer Board: Not less than 7/16-inch- (11-mm-) SFI® Certified Responsible
Urea Formaldehyde Free recycled composite wood backer board. This portion of
the product contributes toward satisfying Credit IEQ 4.4 under LEED.
2. Foam Layer – 2 inch polyethylene foam meets standards for ASTM 2440. The test method
quantifies impact in terms of g-max and Head Injury Criterion (HIC) scores. Promotes
closed-loop recycling of post-industrial scrap. Contains at least 60% and up to 100%
recycled pre-consumer raw material. The use of pre-consumer recycled material can
contribute to LEED® certification points.
3. Covering – 18 oz. laminated leather grain embossed vinyl BACshield: Anti-Mildew,
Anti-Fungus, Antimicrobial, Antibacterial treated, UV treated. Passes ASTM E84 (Class A),
NFPA-701 & Cal 117 FR tests C.P.S.I.A. Certified.
Typical panel to be manufactured at 12 inch width by specified height.
All columns and corners to be pre-fabricated to fit field condition
INSTALLATION

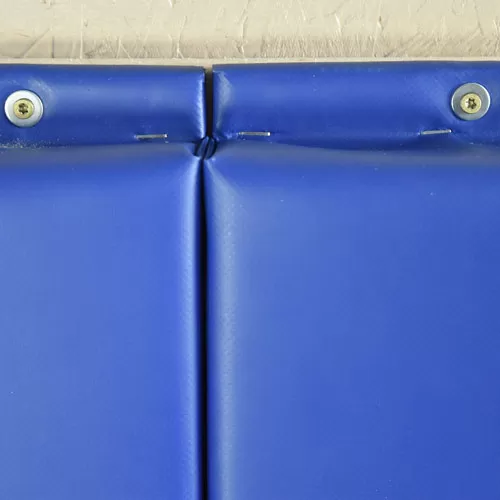

1. 1 inch Nail Margin top and bottom along width edge attached directly to wall using
appropriate hardware for wall type. Refer to ASTM standards for height above finished
floor. 4 inch AFF to bottom of foam current.
Shipping
Ships via freight delivery shrink wrapped on pallets.
This Product Ships Freight Only.
Please review our shipping disclaimer.
WARNING: This product can expose you to chemicals including Lead and/or Phthalates, which are known to the
State of California to cause cancer and birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
| SKU# | SPD1WPI12X84NM |
| In Stock | Yes |
| Product Type | Mat |
| Material Type | Vinyl covered Foam |
| Product Edging | Straight |
| Thickness | 2 inch |
| Width | 1.00 feet |
| Length | 7.00 feet |
| SF per Item | 7.00 |
| Weight | 14.70 lbs |
| Packaging | Shrink Wrapped on Pallets |
| Number of Pieces per Package Type | 1 |
| Non Absorbent | No |
| Special Adhesives | Yes |
| Interlock Loss | 0.00 feet |
| Interlocking Connections | No |
| Made In | USA |
| Surface Finish | Smooth, Flat |
| Surface Design | Solid color |
| Installation Method | Direct screw |
| UV Treated | Yes |
| Reversible | No |
| Border Strips Included | No |
